PRODUCTS

Force Measurement Gauges and Test Stands are available at Central Carolina Scale

Both the Intercomp and Dillon line of force measurement items are available. The Dillon force gauge is a self contained measurement device that monitors forces and or weights that push or pull on its built-in load cell. The measurement appears on its digital readout in any unit of measure desired. The instruments are constantly monitoring for peak loads in tension and compression. New Dillon force gauges are available in a wide assortment of capacities from 5 to 2500 N (1.1 to 550 lb / 0.5 to 250 kg).

	Intercomp CSA High Capacity Automatic Test Stand Item Number: 100026 Digital, cycle mode, AC power, fully automatic and programmable, NTEP approved indicator and load cell. Ideal for calibration of Intercomp platform scales, load cells and general purpose compression testing. 50,000-100,000lb/25,000-50,000kg Capacity
	CSA High Capacity Automatic Test Stand Item Number: 100025 Digital, cycle mode, AC power, fully automatic and programmable, NTEP approved indicator and load cell. Ideal for calibration of Intercomp platform scales, load cells and general purpose compression testing. Up to 25,000lb/12,500kg Capacity
	Intercomp CSM High Capacity Manual Test Stand Portable, digital, AC power, NTEP approved indicator and load cell. Ideal for calibration of most Intercomp platform scales, load cells and general purpose compression testing. Portable model show in photograph. Standard model has legs and is floor mounted. Item Number: 100024 50,000-100,000lb/25,000-50,000kg Capacity
	CSM High Capacity Manual Test Stand Portable, digital, AC power, NTEP approved indicator and load cell. Ideal for calibration of most Intercomp platform scales, load cells and general purpose compression testing. Portable model shown in photograph. Standard model has legs and is floor mounted. Item Number: 100023 Up to 25,000lb/12,500kg Capacity
	Intercomp CST Medium Capacity Manual Test Stand Digital force and travel, battery power, push button controls for use in general purpose compression testing applications. Item Number: 100059 5,000lb/2,500kg Capacity

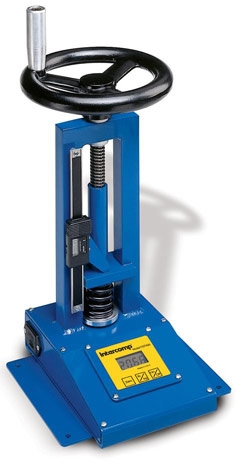

	Intercomp VST Low Capacity Manual Test Stand Digital force and travel, battery power, push button controls for use in general purpose compression testing applications. Item Number: 100058 1,000lb/500kg Capacity

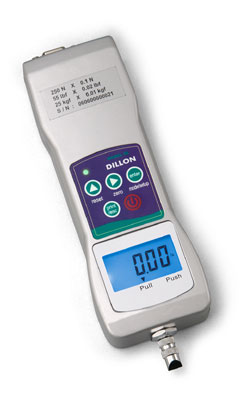

	Dillon’s Model GL force gauge is packed with features not found in its price class: Six capacity choices Accuracy to 0.4% of capacity Rechargeable battery Backlit display Tension and compression measurement Includes carry case, charger, six common fittings and calibration certificate One year limited warranty Everything needed for common testing Limitless uses: Handheld weighing, quality assurance, R&D, ergonomic evaluation, safety compliance, building accessibility, and many more Matching CT test stand available below

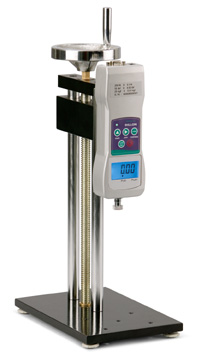

shown w/ optional Dillon GL force gauge	Dillon Model CT Test Stand Ultra affordable Improves testing consistency Applies tension and compression loads to Capacity: 500N/110lbf/50kgf Accomodates Dillon GL and competitive force gauges
	Mark-10 MK Ergonomics Testing Kit Series -- Test push/pull muscle strength and functional task requirements up to 500 lb The Ergonomic Testing Kits from Mark-10 make job task analysis and ergonomic testing analysis simple and accurate, ideal for ADA compliance, workplace design, and ergonomic studies. These kits present the ergonomist and other professionals with a simple and economical testing solution. The kits are available in capacities of 200 lb or 500 lb.
